Dual 30 dB RF Coupler with Integrated Loads

Lenolink G5226E is a dual 30 dB RF coupler assembly designed for RF signal coupling and distribution applications in the 1.7–4.2 GHz frequency range.

The assembly provides a specified coupling value of 30 ± 1.8 dB, together with ≥80 dB isolation between the specified input and UL/DL paths.

The product uses a 50 Ω RF interface and features 4.3-10 Female input connectors, QMA Female UL/DL ports and SMA interfaces for the internal coupling configuration.

With specified PIM performance of ≤−160 dBc @ 2 × 43 dBm, the G5226E is designed for RF infrastructure applications where controlled signal coupling, high isolation and low passive intermodulation are required.

Dual RF Coupling Configuration

The G5226E incorporates two coupling paths within a single RF assembly.

According to the supplied specification:

• I/P1 → UL/DL2: 30 ± 1.8 dB coupling
• I/P2 → UL/DL1: 30 ± 1.8 dB coupling
• Specified isolation between the corresponding paths: ≥80 dB

This dual-path configuration provides controlled RF coupling while maintaining high isolation between the specified RF paths.

Key Specifications

Parameter	Specification
Model	G5226E
Frequency Range	1.7–4.2 GHz
Coupling	30 ± 1.8 dB
Return Loss	≥15.4 dB
Isolation	≥80 dB
Impedance	50 Ω
PIM, 3rd Order	≤−160 dBc @ 2 × 43 dBm
Input Power, CW	10 W per input
Input Power, CW Limited Time	40 W per input
Input Power, Peak	400 W per input
Input Connector	4.3-10 Female
UL/DL Port Connector	QMA Female
C/P Connector	SMA
Main Coupler Output	RG405 Cable Flange
Operating Temperature	Not specified in supplied document
Dimensions	Per mechanical drawing
Weight	Not specified
Load Configuration	Integrated loads, per product configuration

Maximum Composite Input Power

Input Power Condition	Maximum Input Power
CW	10 W per input
CW, Limited Time	40 W per input
Peak	400 W per input

Note: The specified input power limits depend on the operating condition. The 400 W value is specified as peak input power and should not be interpreted as continuous CW power.

High Isolation Between RF Paths

The G5226E provides specified isolation of ≥80 dB between the following RF paths:

• I/P1 → UL/DL2
• I/P2 → UL/DL1

The high isolation specification helps limit unwanted RF coupling between the designated signal paths.

Ultra-Low PIM Performance

The G5226E provides specified third-order passive intermodulation performance of:

≤−160 dBc @ 2 × 43 dBm

This low-PIM specification makes the assembly suitable for RF infrastructure where passive intermodulation performance is an important system consideration.

Working Principle

How Does the Dual RF Coupler Work?

The G5226E uses two RF coupling paths to sample a controlled portion of the RF signal from the designated input paths.

The coupling value is specified at 30 ± 1.8 dB, while the main RF paths maintain the required RF transmission characteristics.

The dual configuration provides coupling between the specified input and UL/DL paths while maintaining ≥80 dB isolation between the corresponding paths.

The integrated load configuration provides the required RF termination within the assembly.

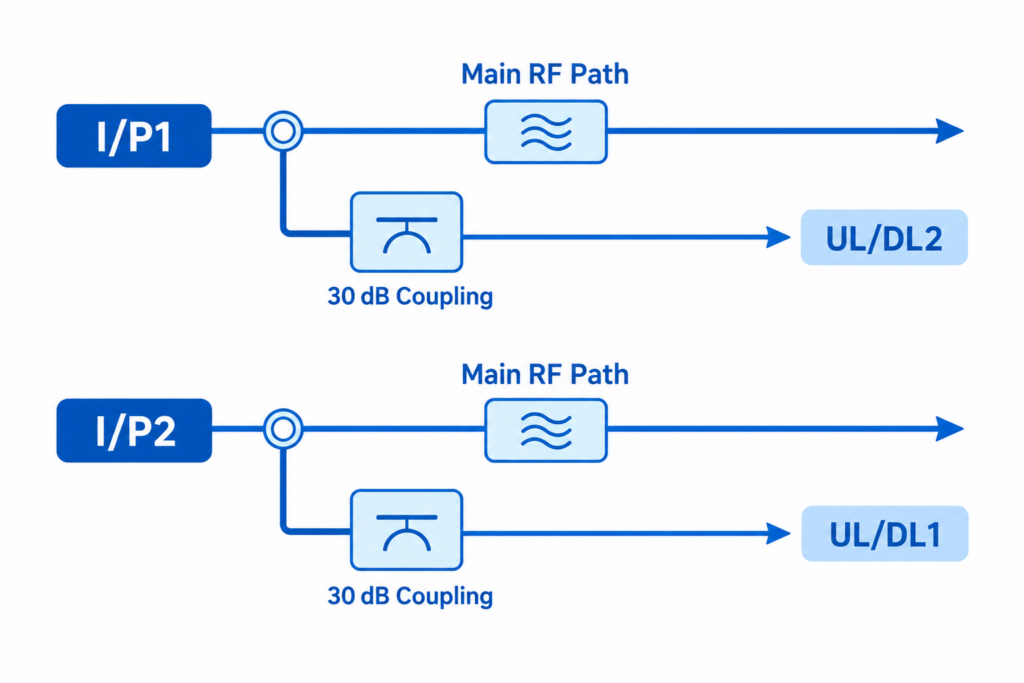

Simplified RF Configuration

Mechanical Specifications

Mechanical Specifications

Parameter	Specification
Dimensions	Per mechanical drawing
Input Connector	4.3-10 Female
UL/DL Port	QMA Female
C/P	SMA
Main Coupler Output	RG405 Cable Flange
Load Configuration	Integrated loads
Housing / Finish	According to product configuration

Typical Applications

RF Distribution Systems

The G5226E can be integrated into RF distribution architectures requiring controlled RF signal coupling and high isolation.

Cellular and Wireless Infrastructure

The 1.7–4.2 GHz operating range makes the assembly suitable for applicable cellular and wireless communication infrastructure.

Multi-Path RF Systems

The dual coupling configuration can be used in systems requiring two controlled RF coupling paths within a compact assembly.

RF Monitoring and Signal Sampling

The coupled RF paths can be used where controlled RF sampling is required for system monitoring, measurement or distribution.

RF Equipment Integration

The multi-interface connector configuration allows the assembly to be integrated into specialized RF equipment and distribution architectures.

Key Features

• 1.7–4.2 GHz operating frequency
• Dual 30 dB RF coupling configuration
• 30 ± 1.8 dB coupling
• ≥80 dB specified isolation
• ≥15.4 dB return loss
• ≤−160 dBc PIM @ 2 × 43 dBm
• 50 Ω impedance
• 10 W CW input power per input
• 40 W CW limited-time input per input
• 400 W peak input power per input
• 4.3-10 Female input connectors
• QMA Female UL/DL interfaces
• SMA C/P interface
• Integrated load configuration
• Compact RF assembly

Technical Advantages

Dual Coupling Architecture

Two coupling paths are integrated into a single RF assembly, simplifying integration where dual RF coupling is required.

30 dB Coupling

The specified coupling value of 30 ± 1.8 dB provides controlled RF signal sampling.

High Isolation

The specified isolation of ≥80 dB provides strong separation between the designated RF paths.

Low-PIM Performance

With PIM specified at ≤−160 dBc @ 2 × 43 dBm, the assembly supports RF applications where passive intermodulation performance is important.

Wide Frequency Range

The 1.7–4.2 GHz frequency range covers a broad portion of modern cellular and wireless RF applications.

Multiple RF Interfaces

The combination of 4.3-10 Female, QMA Female, SMA and RG405 cable flange interfaces provides a configuration suitable for specialized RF equipment integration.

Frequently Asked Questions

What frequency range does the G5226E support?

The G5226E is specified for 1.7–4.2 GHz operation.

What is the coupling value?

The specified coupling is 30 ± 1.8 dB.

Is this a single or dual RF coupler?

The product is specified as a Dual 30 dB Coupler with Loads, with two designated RF coupling paths.

What is the isolation?

The specified isolation is ≥80 dB between the corresponding RF paths.

What is the return loss?

The specified return loss is ≥15.4 dB.

What is the PIM performance?

The specified third-order PIM performance is ≤−160 dBc @ 2 × 43 dBm.

What is the maximum input power?

The specified maximum composite input power at each input is:

• 10 W CW
• 40 W CW, limited time
• 400 W peak

The 400 W value is a peak specification and should not be treated as continuous CW power.

What is the impedance?

The RF impedance is 50 Ω.

What connectors are used?

The specified configuration includes:

• 4.3-10 Female input connectors
• QMA Female UL/DL ports
• SMA C/P connector
• RG405 cable flange for the main coupler output

Does the product include RF loads?

Yes. The product is specified as a Dual 30 dB Coupler with Loads, with integrated load components according to the supplied configuration.

What applications is this RF coupler designed for?

The product is intended for specialized RF distribution, signal coupling and wireless communication infrastructure applications within the specified 1.7–4.2 GHz frequency range.
